NAVELLO S.P.A.

Via Chiabotti Rea, 9 - 12060 Monchiero (CN) - ITALY

Phone +39 0173 792010 - 6 - Fax +39 0173 792011

www.navello.it/en

SETA

Made in Italy

Wood, fully satisfies the performance requirements increasingly required by the customer.

Seta by Navello

Meets all the requirements of modern construction and restructuring thanks to its small dimensions of the frame.
Wood, fully satisfies the performance requirements increasingly required by the customer.

WINDOW FEATURES

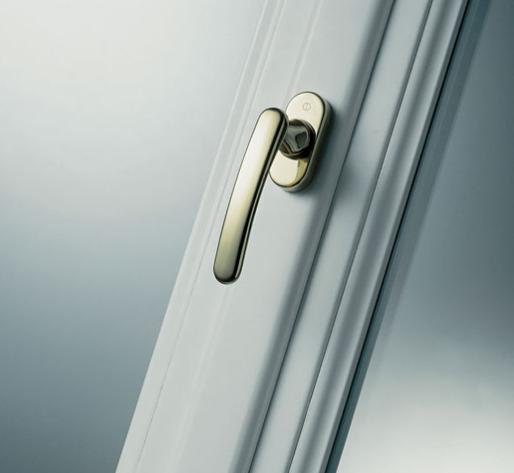

Window with 55×78 mm section sashes and 55×68 mm frame, flush hardware with visible fittings, anuba hinge.
Frame built with long cross members to avoid exposing the head wood on the sill and at the top of the window.
Water drainage channel made entirely of wood so it looks good when the window is open.
Seal with enlarged cavity to allow for 2.5 mm compression on closure.
Glass rebate of 18 mm to protect the double glazing sealing silicon from UV rays.
4/15/4 low-emission standard double glazing, with a 10-year warranty against the formation of condensation. 3+3 standard anti-injury glass on the French window.

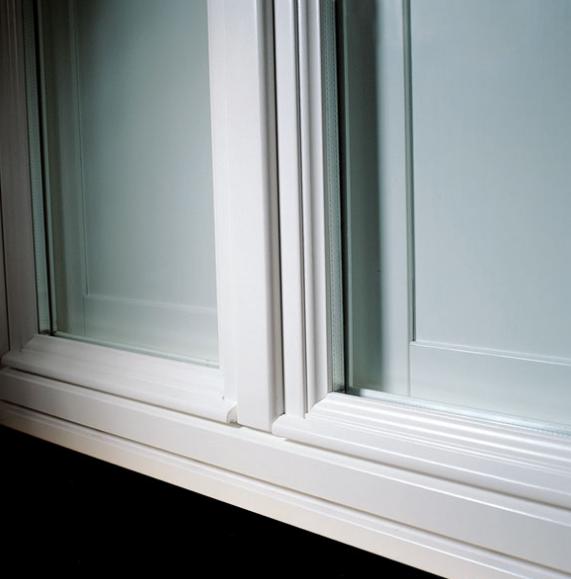

Rounded glazing bead (18 x 16 mm) and leaf give the window a fluider look and decrease exposure to sun and rain.
